Nitto 156A Electrical wire harness binding flame retardant insulating tape


Load video... from .. on Vimeo.

Collection

THIS PAGE TABEL

Nitto 156a tape,

NITTO 156A,

Product description:
Nitto 156A is an insulating tape coated with propylene and rubber adhesives on acetate cloth. Nitto No.156A is a UL certified flame retardant adhesive tape.Mainly used for electrical, electronic machine insulation and vehicle wiring harness insulation protection and bundling.

Application and characteristics of products:
Acetate cloth provides sufficient physical strength, including tensile strength.
Provides excellent flexibility and excellent tightness.
UL certified flame retardant tape. (UL file number E-34833).
Low VOC smell environmental protection tape.

Main applications:
Termination and external insulation of transformers and coils.
Electrical insulation protection and binding of wires.

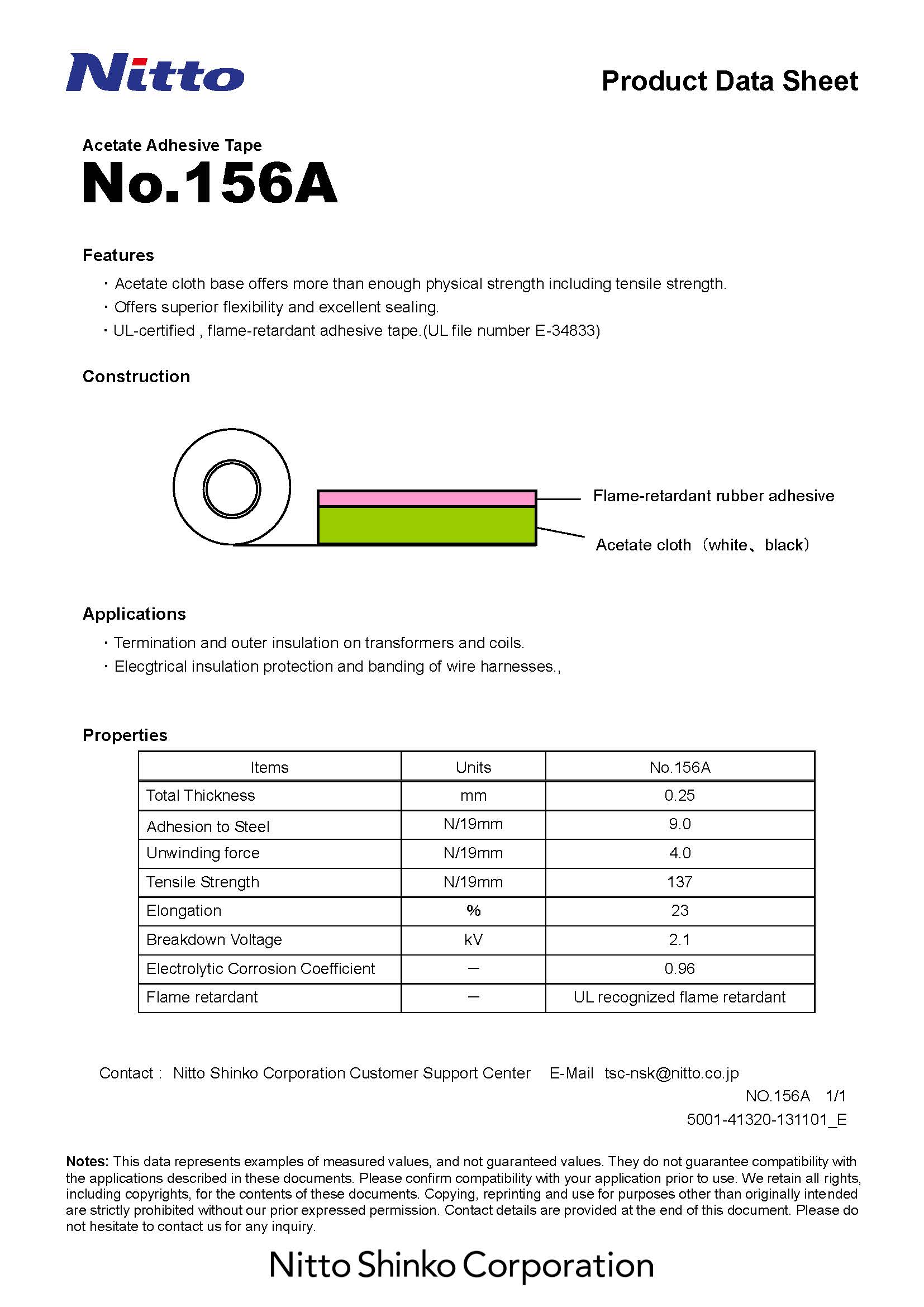

nitto 156a tds

Technical parameters

Brand: Nitto
Specifications: 1130mm*30m
Base material: Acetate cloth
Thickness: 0.25mm
Color: White, black
Adhesive type: Acrylic acid
units: Roll
Uses: Termination and external insulation of transformers and coils.
Electrical insulation protection and binding of wires.
